Scan Images for Known Vulnerabilities - Trivy

Post on October 19, 2023

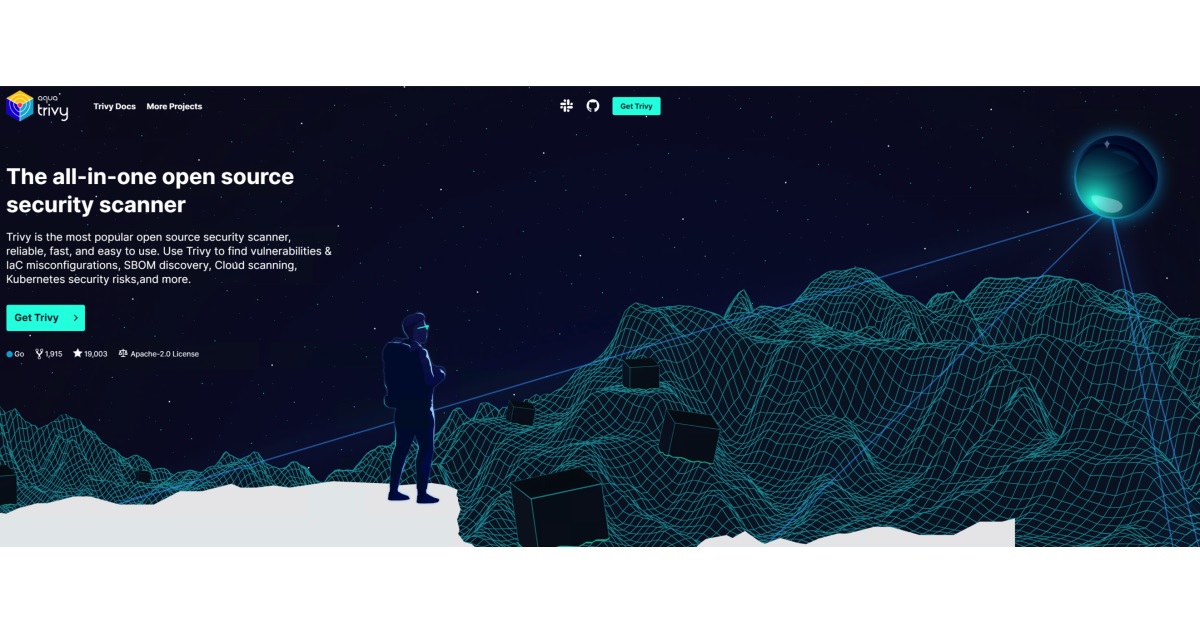

About Trivy

Trivy is a comprehensive and versatile security scanner. Trivy has scanners that look for security issues, and targets where it can find those issues.

Targets (what Trivy can scan):

Container Image
Filesystem
Git Repository (remote)
Virtual Machine Image
Kubernetes
AWS

Scanners (what Trivy can find there):

OS packages and software dependencies in use (SBOM)
Known vulnerabilities (CVEs)
IaC issues and misconfigurations
Sensitive information and secrets
Software licenses

Severity Level

The severity is taken from the selected data source since the severity from vendors is more accurate. Using CVE-2023-0464 as an example, while it is rated as "HIGH" in NVD, Red Hat has marked its 'Impact' as "Low". As a result, Trivy will display it as "Low".

The severity depends on the compile option, the default configuration, etc. NVD doesn't know how the vendor distributes the software. Red Hat evaluates the severity more accurately. That's why Trivy prefers vendor scores over NVD.

If the data source does not provide a severity, the severity is determined based on the CVSS score as follows:

CVSS v3.0 Ratings

Base Score Range	Severity
0.1-3.9	Low
4.0-6.9	Medium
7.0-8.9	High
9.0-10.0	Critical

Installation

For Debian/Ubuntu (Official)

shellscript

1sudo apt-get install wget apt-transport-https gnupg lsb-release
2wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | gpg --dearmor | sudo tee /usr/share/keyrings/trivy.gpg > /dev/null
3echo "deb [signed-by=/usr/share/keyrings/trivy.gpg] https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main" | sudo tee -a /etc/apt/sources.list.d/trivy.list
4sudo apt-get update
5sudo apt-get install trivy

Installing Trivy

Example

Scan

Try to scan my container image from Dockerhub - jasonlws/alpine-curl:latest

Input

shellscript

1trivy image jasonlws/alpine-curl:latest

Output

shellscript

12023-10-19T11:05:26.838-0400    INFO    Need to update DB
22023-10-19T11:05:26.838-0400    INFO    DB Repository: ghcr.io/aquasecurity/trivy-db
32023-10-19T11:05:26.839-0400    INFO    Downloading DB...
440.57 MiB / 40.57 MiB [----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------] 100.00% 6.45 MiB p/s 6.5s2023-10-19T11:05:34.225-0400    INFO    Vulnerability scanning is enabled
52023-10-19T11:05:34.226-0400    INFO    Secret scanning is enabled
62023-10-19T11:05:34.226-0400    INFO    If your scanning is slow, please try '--scanners vuln' to disable secret scanning
72023-10-19T11:05:34.226-0400    INFO    Please see also https://aquasecurity.github.io/trivy/v0.46/docs/scanner/secret/#recommendation for faster secret detection
82023-10-19T11:05:36.557-0400    INFO    Detected OS: alpine
92023-10-19T11:05:36.557-0400    INFO    Detecting Alpine vulnerabilities...
102023-10-19T11:05:36.566-0400    INFO    Number of language-specific files: 0
11
12jasonlws/alpine-curl:latest (alpine 3.18.4)
13
14Total: 5 (UNKNOWN: 0, LOW: 0, MEDIUM: 2, HIGH: 3, CRITICAL: 0)
15
16┌──────────────┬────────────────┬──────────┬────────┬───────────────────┬───────────────┬──────────────────────────────────────────────────────────────┐
17│   Library    │ Vulnerability  │ Severity │ Status │ Installed Version │ Fixed Version │                            Title                             │
18├──────────────┼────────────────┼──────────┼────────┼───────────────────┼───────────────┼──────────────────────────────────────────────────────────────┤
19│ curl         │ CVE-2023-38545 │ HIGH     │ fixed  │ 8.3.0-r0          │ 8.4.0-r0      │ a heap based buffer overflow in the SOCKS5 proxy handshake   │
20│              │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2023-38545                   │
21│              ├────────────────┼──────────┤        │                   │               ├──────────────────────────────────────────────────────────────┤
22│              │ CVE-2023-38546 │ MEDIUM   │        │                   │               │ cookie injection with none file                              │
23│              │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2023-38546                   │
24├──────────────┼────────────────┼──────────┤        │                   │               ├──────────────────────────────────────────────────────────────┤
25│ libcurl      │ CVE-2023-38545 │ HIGH     │        │                   │               │ a heap based buffer overflow in the SOCKS5 proxy handshake   │
26│              │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2023-38545                   │
27│              ├────────────────┼──────────┤        │                   │               ├──────────────────────────────────────────────────────────────┤
28│              │ CVE-2023-38546 │ MEDIUM   │        │                   │               │ cookie injection with none file                              │
29│              │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2023-38546                   │
30├──────────────┼────────────────┼──────────┤        ├───────────────────┼───────────────┼──────────────────────────────────────────────────────────────┤
31│ nghttp2-libs │ CVE-2023-44487 │ HIGH     │        │ 1.55.1-r0         │ 1.57.0-r0     │ Multiple HTTP/2 enabled web servers are vulnerable to a DDoS │
32│              │                │          │        │                   │               │ attack (Rapid...                                             │
33│              │                │          │        │                   │               │ https://avd.aquasec.com/nvd/cve-2023-44487                   │
34└──────────────┴────────────────┴──────────┴────────┴───────────────────┴───────────────┴──────────────────────────────────────────────────────────────┘

Apply fix

According to the above report, all vulnerabilities should be fixed with latest version of library. So, let rebuild and publish the image with latest version of alpine and apply apk upgrade to update latest packages.

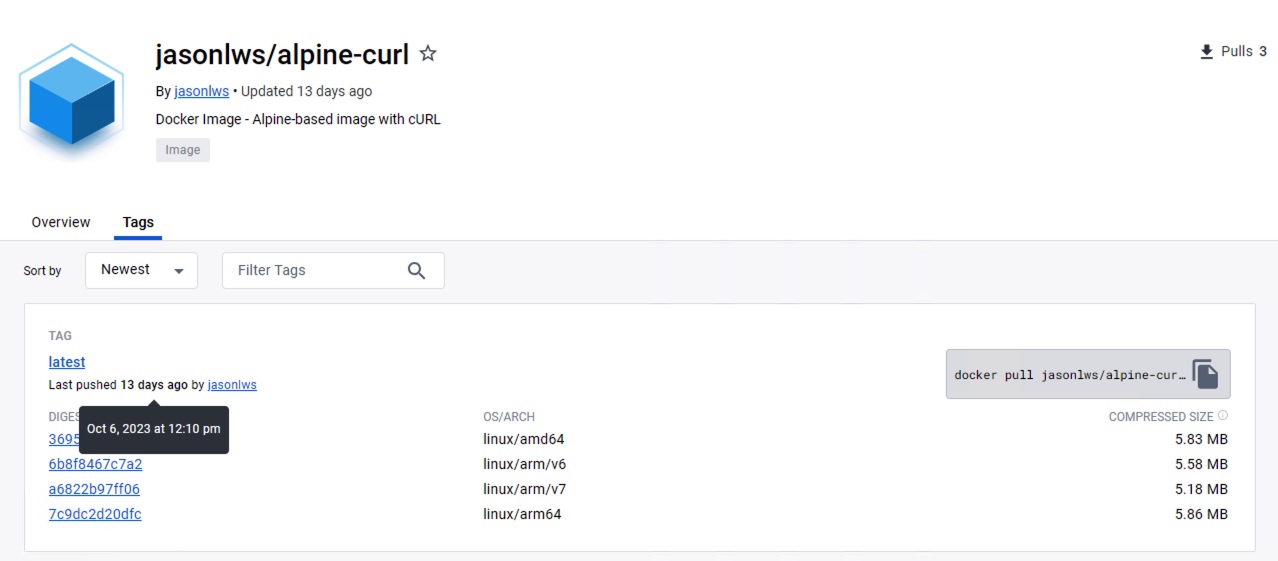

Before rebuild and publish

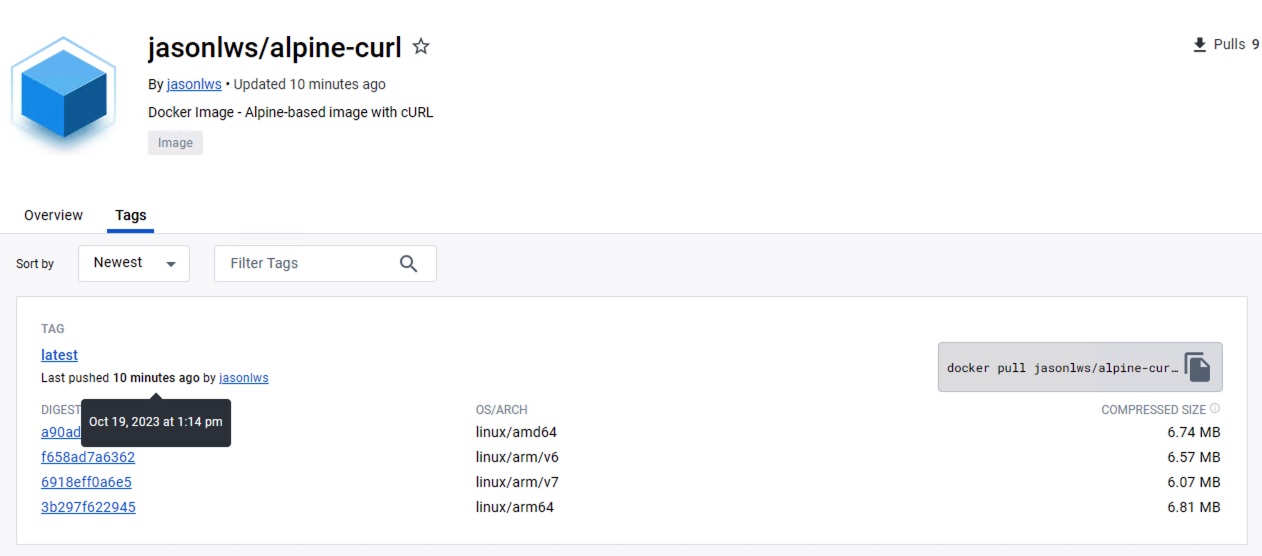

After rebuild and publish

Rescan

Input

shellscript

1trivy image jasonlws/alpine-curl:latest

Output

shellscript

12023-10-19T13:15:09.743-0400    INFO    Vulnerability scanning is enabled
22023-10-19T13:15:09.743-0400    INFO    Secret scanning is enabled
32023-10-19T13:15:09.743-0400    INFO    If your scanning is slow, please try '--scanners vuln' to disable secret scanning
42023-10-19T13:15:09.743-0400    INFO    Please see also https://aquasecurity.github.io/trivy/v0.46/docs/scanner/secret/#recommendation for faster secret detection
52023-10-19T13:15:12.322-0400    INFO    Detected OS: alpine
62023-10-19T13:15:12.322-0400    INFO    Detecting Alpine vulnerabilities...
72023-10-19T13:15:12.323-0400    INFO    Number of language-specific files: 0
8
9jasonlws/alpine-curl:latest (alpine 3.18.4)
10
11Total: 0 (UNKNOWN: 0, LOW: 0, MEDIUM: 0, HIGH: 0, CRITICAL: 0)

Good ! All severity vulnerabilities are gone.

How to filter trivy result by status

By adding --severity to severities of security issues to be displayed (UNKNOWN,LOW,MEDIUM,HIGH,CRITICAL):

Input

shellscript

1trivy image --severity HIGH,CRITICAL jasonlws/alpine-curl:latest

Output

shellscript

12023-10-19T13:45:15.821-0400    INFO    Vulnerability scanning is enabled
22023-10-19T13:45:15.822-0400    INFO    Secret scanning is enabled
32023-10-19T13:45:15.822-0400    INFO    If your scanning is slow, please try '--scanners vuln' to disable secret scanning
42023-10-19T13:45:15.822-0400    INFO    Please see also https://aquasecurity.github.io/trivy/v0.46/docs/scanner/secret/#recommendation for faster secret detection
52023-10-19T13:45:16.518-0400    INFO    Detected OS: alpine
62023-10-19T13:45:16.519-0400    INFO    Detecting Alpine vulnerabilities...
72023-10-19T13:45:16.526-0400    INFO    Number of language-specific files: 0
8
9jasonlws/alpine-curl:latest (alpine 3.18.4)
10
11Total: 0 (HIGH: 0, CRITICAL: 0)

Kubernetes: How to scan all image of pods in target namespace

Two pods created in jasonlws namespace. jasonlws1 pod with jasonlws/alpine-curl:latest image and jasonlws2 pod with jasonlws/alpine-curl:3.15.10 image.

Input

shellscript

1kubectl get pod --namespace jasonlws --output custom-columns=POD-NAME:.metadata.name,IMAGE-NAME:.spec.containers[*].image

Output

shellscript

1POD-NAME    IMAGE-NAME
2jasonlws1   jasonlws/alpine-curl:latest
3jasonlws2   jasonlws/alpine-curl:3.15.10

Run follow command to retrieve the result - namespace: jasonlws and image with High or Critical severity vulnerabilities.

Input

shellscript

1for i in `kubectl get pod --namespace jasonlws --no-headers --output custom-columns=IMAGE-NAME:.spec.containers[*].image`; do trivy -q image --severity HIGH,CRITICAL $i | grep -iEB3 "HIGH:|CRITICAL:" ; done

Output

shellscript

1jasonlws/alpine-curl:3.15.10 (alpine 3.15.10)
2=============================================
3Total: 3 (HIGH: 3, CRITICAL: 0)
4
5jasonlws/alpine-curl:latest (alpine 3.18.4)
6===========================================
7Total: 0 (HIGH: 0, CRITICAL: 0)

Best Practices

Periodically rescan images
Kubernetes Admission Controllers to scan images
Have your own repository with pre-scanned images ready to go
Integrate scanning into your CI/CD pipeline
